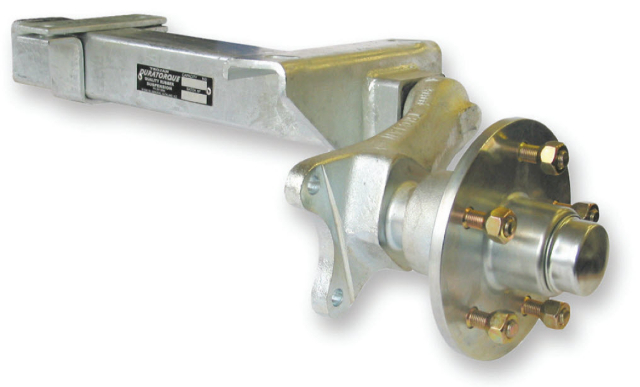

Duratorque Half Beam Axle

Fixed length to suit any width trailer. *Note: Hubs sold separately.
Part No Name Pack Size Weight Price
Qty
T081010LH D/TORQUE MULTI LH (1000KG PER PAIR) EA PR 16 KG 452.93
T081010RH D/TORQUE MULTI RH (1000KG PER PAIR) EA 16 KG 441.88
T081015LH DURATORQUE 1000KG SINGLE SIDE LH RETRO EA 16 KG 452.93
T081015RH DURATORQUE 1000KG SINGLE SIDE RH RETRO EA 16 KG 452.93
T081016RH DURATORQUE 1500KG SINGLE SIDE RH RETRO EA 16 KG 452.93
T081016LH DURATORQUE 1500KG SINGLE SIDE LH RETRO EA 16 KG 452.93
T081020RH D/TORQUE MULTI RH (1500KG PER PAIR) EA 16 KG 452.93
T081020LH D/TORQUE MULTI LH (1500KG PER PAIR) EA 16 KG 452.93
T092055LH D/TORQUE 10"DRUM LH (1500KG PER PAIR) EA 16 KG 577.71
T092055RH D/TORQUE 10"DRUM RH (1500KG PER PAIR) EA 16 KG 572.21
T092057RH D/TORQUE 10"DRUM RH (1750KG PER PAIR) EA 16 KG 560.79
T092057LH D/TORQUE 10"DRUM LH (1750KG PER PAIR) EA 16 KG 560.79
T092040RH D/TORQUE MULTI RH (2200KG PER PAIR) EA 19 KG 596.15
T092040LH D/TORQUE MULTI LH (2200KG PER PAIR) EA 20 KG 596.15


All prices exclude GST
Available
Available
Limited Stock
Limited stock
Build to order
Build to order
Out of Stock
Out of Stock

Note: These half type are sold & priced per side. Each side has the same part number but it is followed by either LH or RH. Those shown as RETRO fit are a direct replacement for very early versions. The capacity stamped on each half is the capacity for 1 pair not each one.





The following table details the minimum measurements from hub face to spring / bracket mounting center.

Fig Model Type: 1000kg, 1500kg, 1750kg  2200kg 3000kg
A Two Piece 220mm 210mm N/A
  Two Piece Retro 200mm N/A
N/A
B Two Piece  340 - 440mm 340 - 440mm  N/A
All Disc  163mm  165mm  165mm
  Hyd Drum 80mm  N/A  N/A
  Elec Drum 10" 95mm  N/A  N/A
  Elec Drum 12"  N/A   N/A   N/A
All  60mm  60mm  25mm
All  30mm  30mm  30mm
F All  145mm 125mm 145mm



Note: Hub equipment is to be ordered separately. Early model hubs will not fit on retro Duratorques.


Part No: Capacity: Type: Hub Type:
T081010LH / RH
1000kg

Non braked & disc braked
T081015LH / RH   1000kg Retro Non braked & disc braked
T081016LH / RH  1500kg  Retro  Non braked & disc braked
T081020LH / RH  1500kg    Non braked & disc braked
T092055LH / RH  1500kg    Electric braked
T092057LH / RH 1750kg    Electric braked
T092040LH / RH  2200kg   Non braked & disc braked




Non braked & disc braked
Non braked & disc braked
This product does not have any spare parts.
