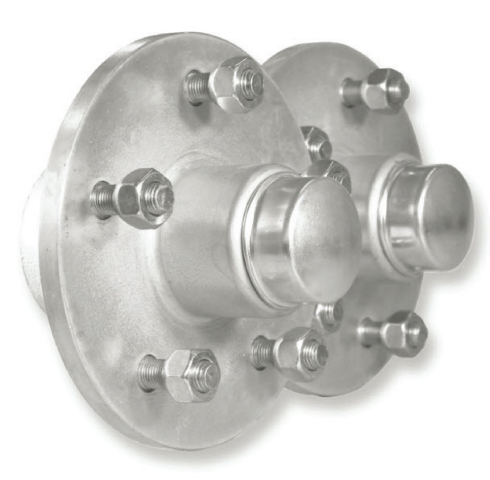

Hub Dimensions:
| Hub Type: Non Braked |
Version: |
Fig A: Outer Bore |
Fig B: Inner Bore |
Fig C: Flange Thickness |
Fig D: Flange Diameter |
Fig E: Overall Width |
| 1500kg |
Early Model |
45mm |
59mm |
18 mm |
175mm |
87mm |
| 1500kg |
Early Model |
45mm |
59mm |
11mm |
140mm |
97mm |
Measurement of stud patterns.
| Part No. |
Studs |
PCD diameter |
Stud width |
Flange diameter |
'x' in mm |
| T082005 |
Blank |
|
|
155mm |
|
| T082008 |
4 |
100mm |
7/16 inch |
155mm |
100.00mm |
| T082010 |
4 |
4 inch |
7/16 inch |
140mm |
101.6mm |
| T082015 |
4 |
4 1/4 inch |
7/16 inch |
155mm |
108.0mm |
| T082018 |
4 |
110mm |
7/16 inch |
155mm |
110.0mm |
| T082020 |
4 |
4 1/2 inch |
7/16 inch |
155mm |
114.3mm |
| T082025 |
5 |
4/14 inch |
7/16 inch |
155mm |
63.449mm |
| T082035 |
5 |
4 1/2 inch |
1/2 inch |
155mm |
67.183mm |
| T082040 |
5 |
120mm |
7/16 inch |
155mm |
70.535mm |
| T082045 |
5 |
5 inch |
7/16 inch |
155mm |
74.650mm |
| T084055 |
6 |
5 1/2 inch |
1/2 inch |
190mm |
139.7mm |
The Flange Diameter is the outside diameter measurement of the hub face that the wheel is fitted.
• Stub axles are not included.
• Wide range of wheel drilling available.
• 3 flange diameters for various wheel diameters.
