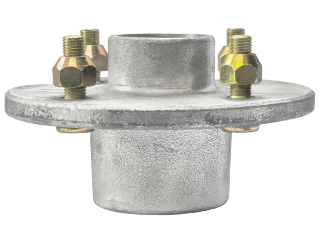

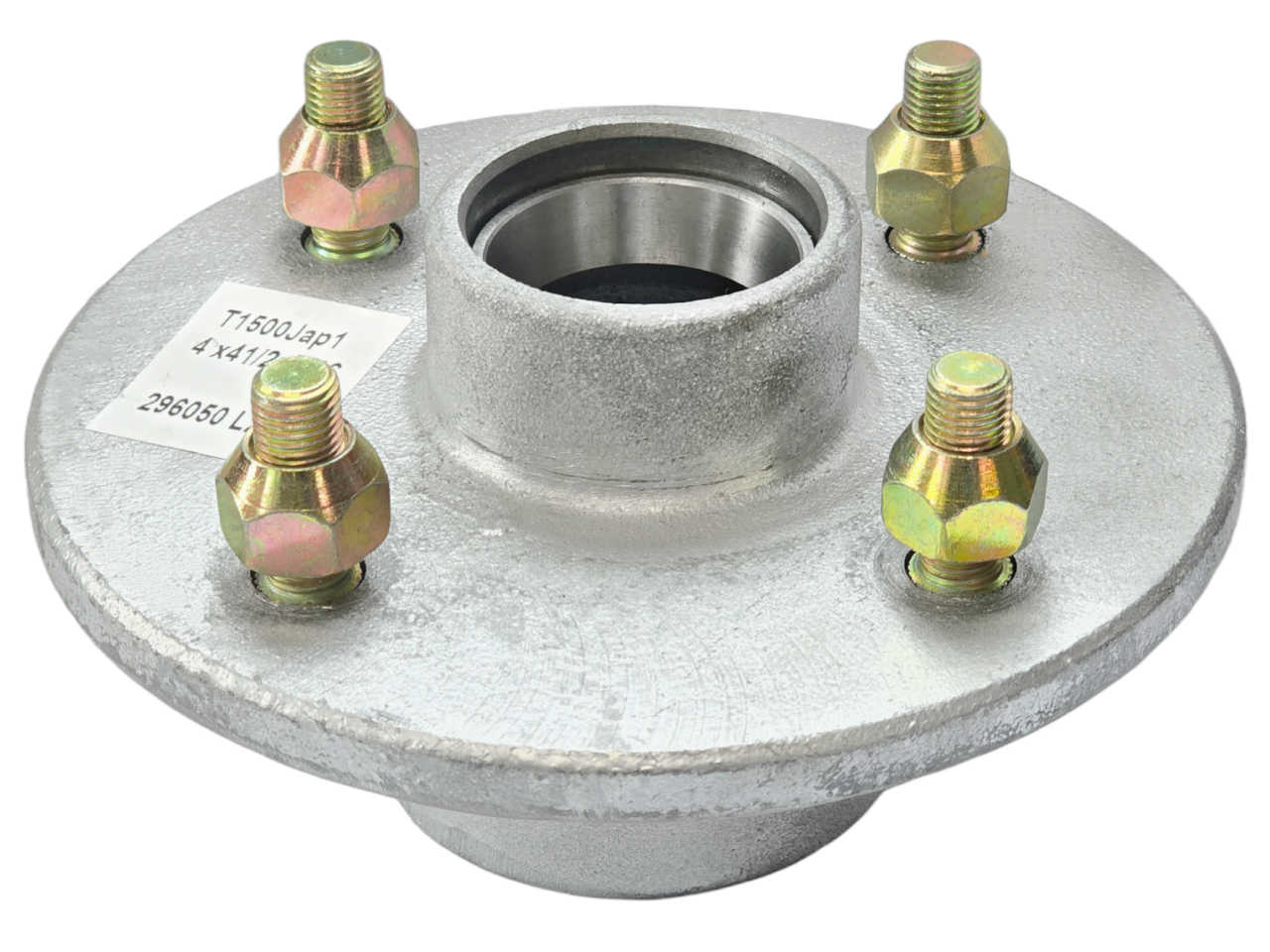

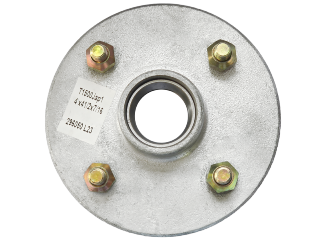

1500kg Early Model Hub - 4x4-1/2x7/16"

HUB 1500KG 4X41/2X7/16 EARLY
T1500JAP1

check_circleAvailable

Pack Size:

EA

$203.00 RRP Incl GST

On orders $0 to $2,000

Hub Spares Details
(Catalogue Link) Page 93

1500KG BEARING & SEAL SPECS
BEARING KIT PART # TPT1184	BEARING NUMBERS	BEARING DIMENSIONS		SEAL KIT PART # TPT10131
DESCRIPTION	BEARING NUMBERS	BEARING DIMENSIONS		SEAL DIMENSIONS
CUP	LM67010	58MM "OD"	INNER	59mm "OD"
CONE	LM67048	32MM "ID"	INNER	59mm "OD"
CUP	LM11910	45MM "OD"	OUTER	37MM "ID"
CONE	LM11949	19MM "ID"	OUTER	37MM "ID"

Average Rating (0 Reviews)

1
2
3
4
5

No one has Reviewed yet. Go on, be the first!

Spare Parts

7/16" UNF Wheel Hub Studs with Nuts x5

7/16" UNF Wheel Hub Studs with Nuts x5

WHEEL STUD/NUT 7/16" X 5

MK2/3 Grease/Dust Cap - 45.2mm (1 7/8") - 1500/1750kg

MK2/3 Grease/Dust Cap - 45.2mm (1 7/8") - 1500/1750kg

GREASE CAP MK2/3 45MM

Bearing Kit 1500kg x1 - Japanese Bearings

Bearing Kit 1500kg x1 - Japanese Bearings

BRG KIT LM 1500KG X1 JAP BRGS

Seal Kit for LM11949 Bearing - 1500kg - x1

Seal Kit for LM11949 Bearing - 1500kg - x1

SEAL KIT 1500KG X1

Axle Nut, Washer, & Split Pin Kit - 1500kg/1750kg

Axle Nut, Washer, & Split Pin Kit - 1500kg/1750kg

AXLE NUT KIT X1

Bearing Kit 1500kg x1 - No Cups - Japanese Bearings

Bearing Kit 1500kg x1 - No Cups - Japanese Bearings

BRG KIT LM 1500KG NO CUPSX1JAP
