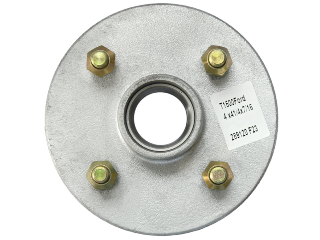

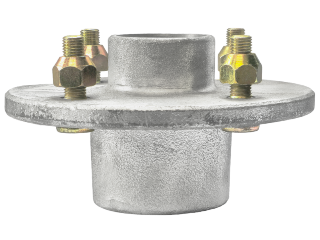

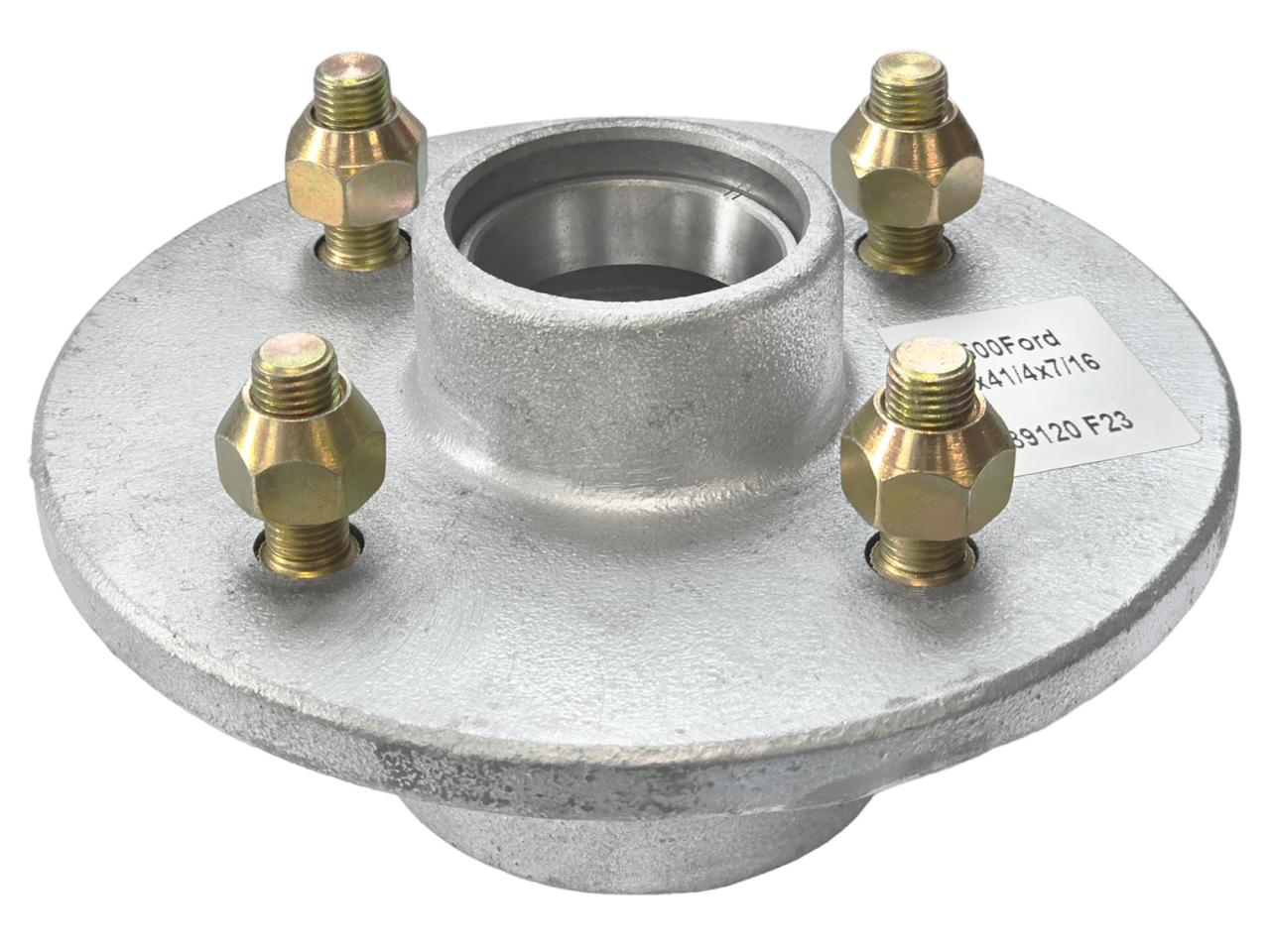

1500kg Early Model Hub - 4x4-1/4x7/16"

HUB 1500KG 4X41/4X716 EARLY
T1500FORD

check_circleAvailable

Pack Size:

EA

$198.00 RRP Incl GST

On orders $0 to $2,000

Hub Spares Details
(Catalogue Link) Page 93

1500KG BEARING & SEAL SPECS
BEARING KIT PART # TPT1184	BEARING NUMBERS	BEARING DIMENSIONS		SEAL KIT PART # TPT10131
DESCRIPTION	BEARING NUMBERS	BEARING DIMENSIONS		SEAL DIMENSIONS
CUP	LM67010	58MM "OD"	INNER	59mm "OD"
CONE	LM67048	32MM "ID"	INNER	59mm "OD"
CUP	LM11910	45MM "OD"	OUTER	37MM "ID"
CONE	LM11949	19MM "ID"	OUTER	37MM "ID"
