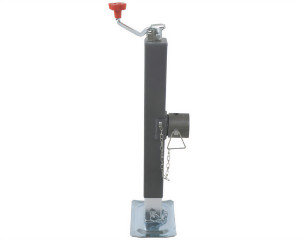

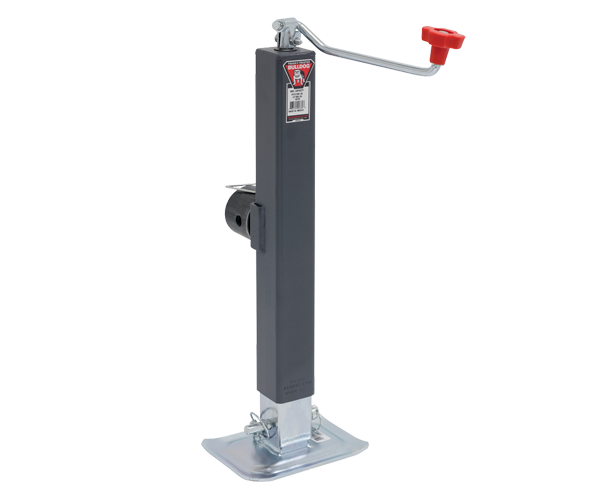

For more than three quarters of a century, BULLDOG jacks have been demonstrated to be the most reliable, field-proven jacks on the market. Smooth, comfortable, ergonomic design. Dependable vertical and side load capacity. Proven reliability for long term use at rated loads. Precision fitted parts for extra stability. A-Frame models listed have grey painted outer and inner tubes - All other models have grey painted outer and clear zinc inner tubes.
-
Bracket height:
- Retracted: 320 mm
- Extended: 1,047 mm
-
Total lift: 723 mm
-
Travel: 381 mm
-

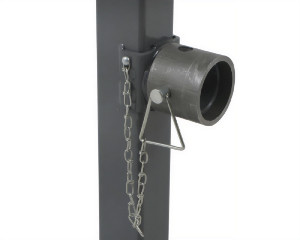

Drop leg: 343 mm
-
Clearance: 260 mm
-
Outside diameter of the outside tube: 57 mm
-
Inner tube diameter: 51 mm
-
Tubing width: 64 mm
-
Handle radius: 229 mm
-
Lift capacity: 2,268 kg
-
Static capacity: 3,629 kg
Other Stands
| Part No: |
Description: |
Rating: |
| T158151 |
Park leg Rnd SW Side, (Travel 382mm (screw travel) + 380mm With Drop Leg) |
2000lb - 900kgs |
| T158452 |
Park leg Rnd SW Top, (Travel 382mm (screw travel) + 380mm With Drop Leg) |
2000lb - 900kgs |
| T182804 |
Bulldog Parkleg square heavy duty, (Travel 315mm (screw travel) + 345mm With Drop Leg) |
5400kg |
| T190708 |
Bulldog parkleg square SWTop, (Travel 320mm (screw travel) + 345mm With Drop Leg) |
3600kg |
