Duofit Coupling - 2500kg

Part No Name Pack Size Weight Price
Qty
T190064 COUPLING 2500KG MULTI FIT RHA EA 0 KG 96.84


All prices exclude GST
Available
Available
Limited Stock
Limited stock
Build to order
Build to order
Out of Stock
Out of Stock

This coupling can be fitted to both 1 7/8” and 50mm towballs by simply lifting and rotating the handle. Available with multifit mounting plate. Cast in steel with an electro zinc plated finish. An anti-rattle screw is fitted and there is provision for fitting a security padlock. When used in the 50mm mode these couplings comply with NZ Standard 5232-1993

  ND: Both early versions of 1 7/8" and 50mm Couplings have been replaced with the Duo-Fit version. Some components can not be interchanged.



Item: Part No: Description: Notes:
1 TPT1305 Handle Assembly - Includes items 1 & 2 Suits Duo Fit & Non Duo Fit
2 TPT1029 Trigger Assembly - includes item 2 Suits all coupling
3 TPT1027 Anti Rattle Screw & Nut  1/2" WW.Suits all Early Couplings
TPT1028  Anti Rattle Screw & Nut 16mm" WW.Suits all Later couplings Including Duo Fit.
4 TPT1030 Lock Pin & Spring  Suits 1 7/8" - Non Duo Fit
4 TPT1306 Lock pin & Spring SuitsDuo Fit Coupling only.

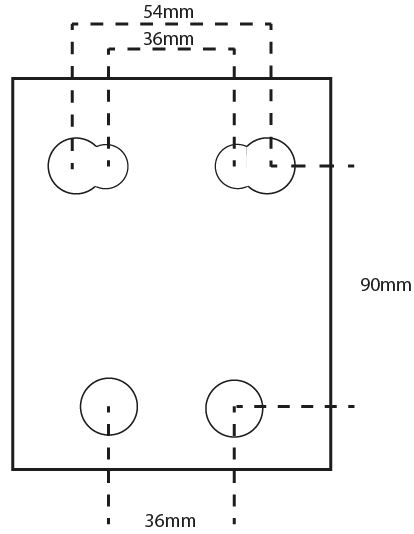

Below is the measurement between the bolt hole center’s. Please note the front hole center’s will suit two different spacing’s by way of a special bolt mounting area. Fitment should be by way of 4x high tensile bolts. This coupling will fit both 1”7/8 and 50mm couplings. Bolt pattern image below.



Part No Name Pack Size Weight Price Qty
TPT1028 ADJUSTER SET LATE MODEL 16M/M PK 0 KG 7.51 ADD TO CART
TPT1027 ADJUSTER EARLY 1/2"DIA PK 0 KG 21.12 ADD TO CART
TPT1305 HANDLE ASSY DUOFIT COUPLINGS PK 0 KG 57.17 ADD TO CART
T574550 COUPLING MOUNT PLATE -TC30 PK 0 KG 17.00 ADD TO CART
TPT1030 LOCK PIN AND SPRING 1 7/8 PK 0 KG 66.57 ADD TO CART
TPT1029 TRIGGER KIT PK 0 KG 20.73 ADD TO CART
TPT1306 LOCK PIN & SPRING DUOFIT PK 0 KG 42.05 ADD TO CART
