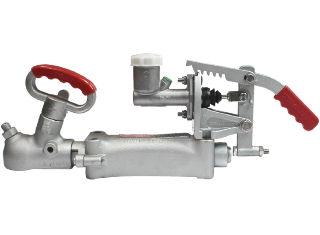

Override Hydraulic Coupling - 2500kg
3/4" Cylinder, Suits 50mm Towball, TC40
T201674
check_circleAvailable
Snap lock type. Complies with Australian Standard AS4177.3
(1994). Galvanised finish with anti-rattle screw. Supplied
with 3/4” Master Cylinder.
Specifications
One of Nz’s most common bolt mounting patterns. Mount pattern pictured below is measured across bolt centers, Rated to 2500kg max. Mounting by way of four 12mm high tensile bolts is recommended. Complies with Australian Standard AS4177.3 (1994).
| Bolt Size |
G 8.8 |
G 10.9 |
M10
|
45ft/lb 60Nm |
60ft/lb 80Nm |
| M12 |
75ft/lb 100Nm |
90ft/lb 120Nm |
