Important
This part is made to order, with a lead time of at least 6 weeks. Please download and fill out the axle order sheet upon ordering.
If you need hubs fitted to your new axle, please see related products below.

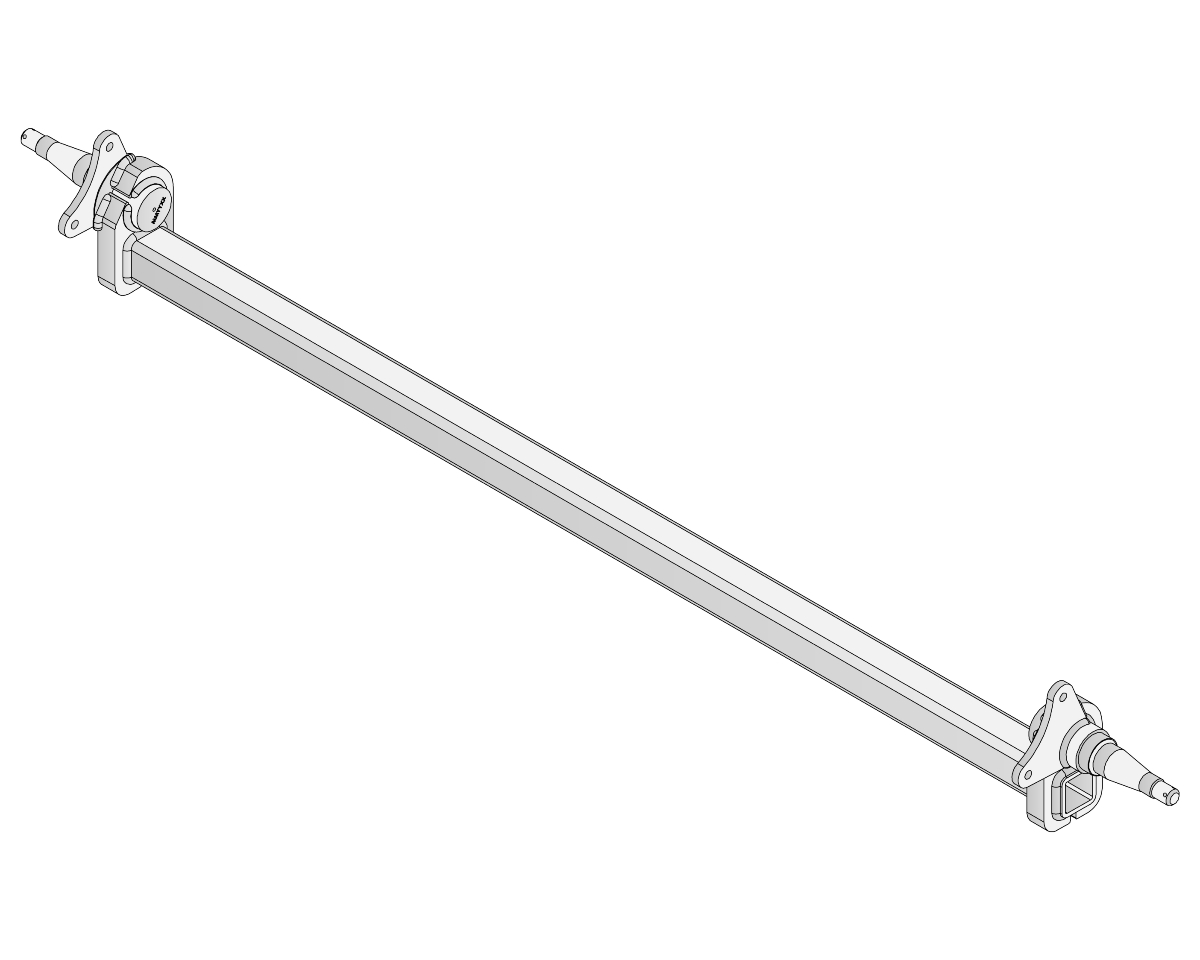

Trojan manufactures a wide range of beam axles to suit most applications. These axles are for use with leaf spring suspensions and include straight beam, drop beam and gull wing types. Braked and non braked types are available. All axles can be supplied either galvanised or in bare metal form. Depending on the capacity, axle beams are manufactured using either 40mm, 50mm or 65mm square hollow box section.
Beam axles are manufactured against firm order only and are built to your specifications.
Measurements C & D are required. The face to face measurement (C) is the measurement from the outside face of one hub to the opposite one. Measurement (D) is measured from the center to center of the springs mounted position.
For Gull Wing axles: Measurements C & D are required plus E which is the required depth of the bend. This can be 60mm, 90mm or 120mm. See E on the image.
For drop beam axles: Measurements C & D are required plus B which is the required height of the drop. This can be 60mm or 90mm. See B on the image.
