Multi Leaf Spring Kit - Short Series - 50mm wide - 1750kg

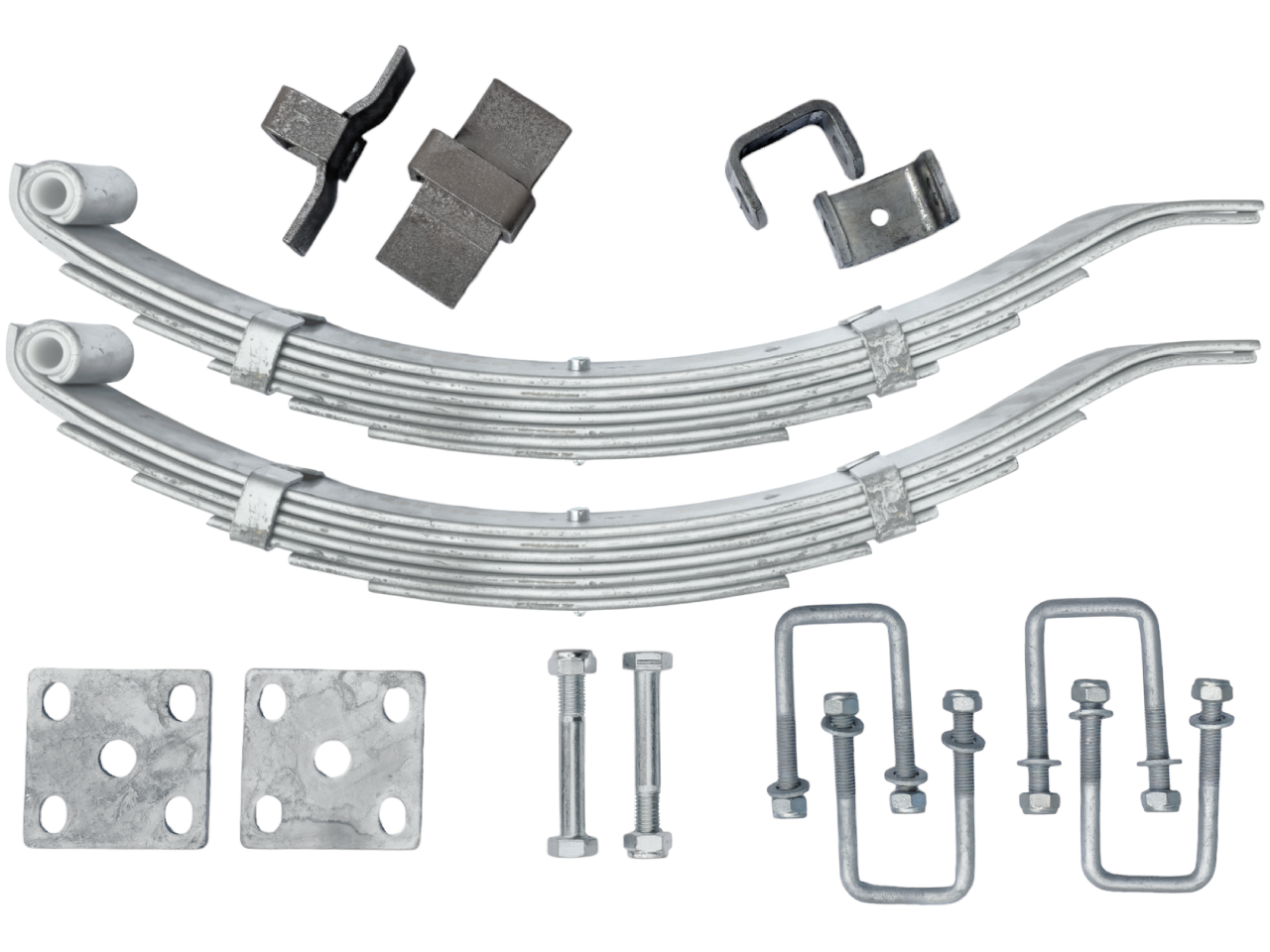

Includes 1x pair Springs, Hangers, Bolts, Slippers, Plates, & 4x U-Bolts
T246175

check_circleAvailable

Pack Size:

EA

$433.00 RRP Incl GST

On orders $0 to $4,000

These Trojan Spring Kits include 1 x pair Springs, Hangers, Bolts, Slippers, U-Bolts & Plates

- Springs are Dacromet coated

Specifications

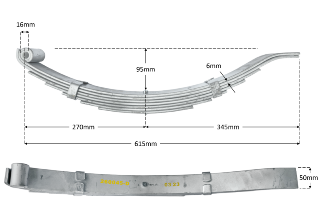

Part No:	Capacity per Pair:	No of leaves & sizes:	O/A length / Eye to center bolt:	Eye Dia:
T246050	500kg	2 - 50 x 6mm	615 - 270mm	16mm
T246075	750kg	3 - 50 x 6mm	615 - 270mm	16mm
T246100	1000kg	4 - 50 x 6mm	615 - 270mm	16mm
T246125	1250kg	5 - 50 x 6mm	615 - 270mm	16mm
T246150	1500kg	6 - 50 x 6mm	615 - 270mm	16mm
T246175	1750kg	7 - 50 x 6mm	615 - 270mm	16mm
