  • Plunger Coupling - 3500kg Capacity

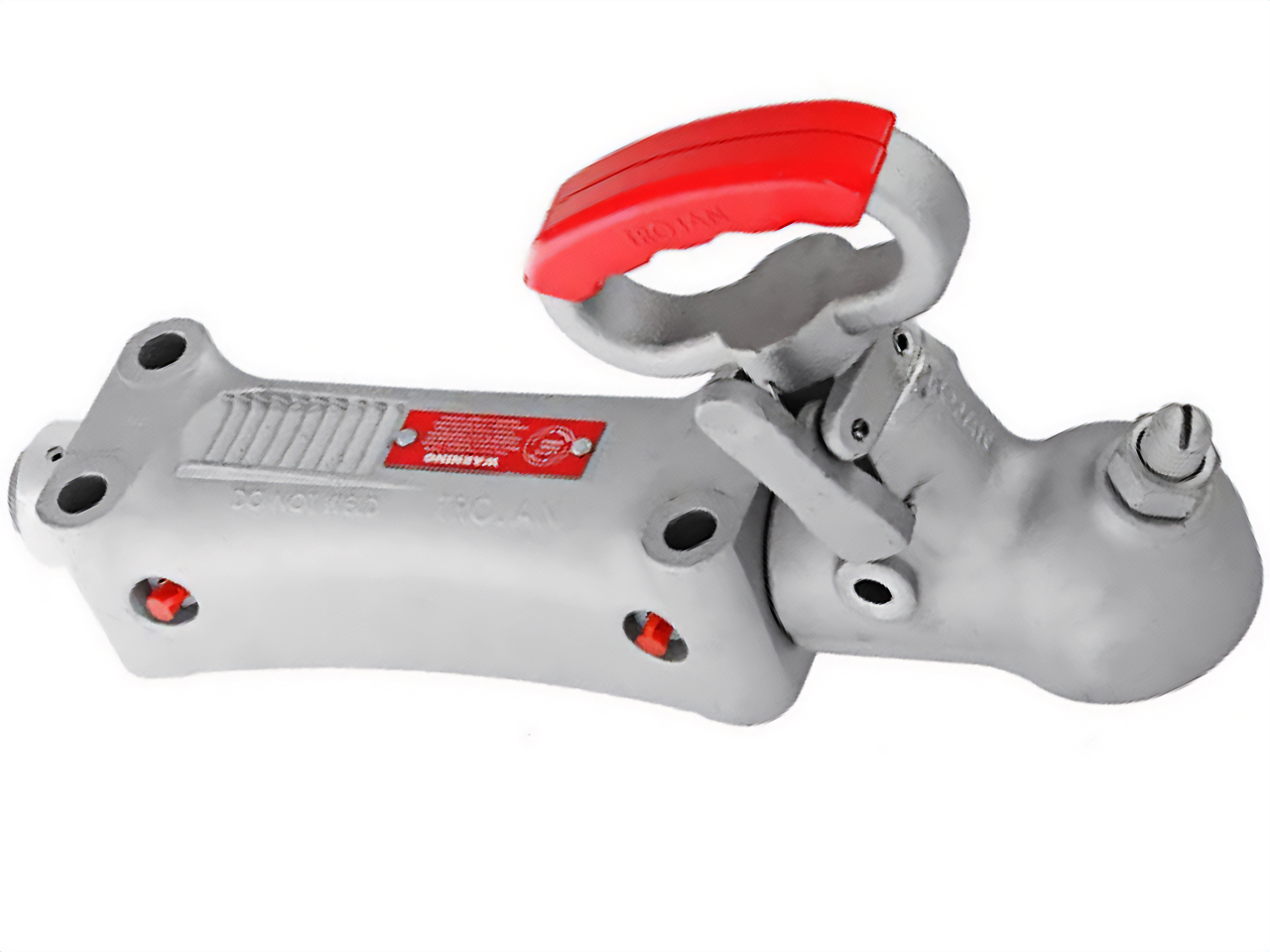

Plunger Coupling - 3500kg Capacity - 50mm Only

Suits 50mm ball, TC40
T190065

check_circleAvailable
Pack Size: EA
$487.00 RRP Incl GST
On orders $0 to $2,000

This is a heavy-duty coupling which has the same mounting as Trojan override couplings. It will fit 50mm towballs. An anti-rattle screw is fitted and there is provision for fitting a security padlock. Complies with NZ standard 5232-1993, when used in the 50mm mode.

Specifications

Below is the measurement between the bolt hole center’s. The bolt holes are to suit 12mm bolts. Fitment should be by way of 4x 12mm high tensile bolts. Can be used along side electric brakes or driver operated brake systems. This coupling will fit both 1”7/8 and 50mm couplings

Bolt Size G 8.8 G 10.9
M10
45ft/lb 60Nm 60ft/lb 80Nm
M12 75ft/lb 100Nm 90ft/lb 120Nm
