Cast shank for 70207-NZ can be mounted pointing up or down.
Your vehicle specific rating and manufacturers recommended towball position may differ from the above maximum ratings. Please check your vehicle owner's handbook.
Specification Name
|
Specification Description |
| Maximum rating |
Trailer - 3500 kg
Ball load - 350 kg
|

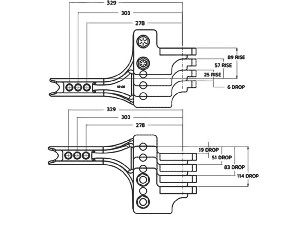

| Drop/Rise |
Maximum drop 90mm from pin centre
Maximum rise 114mm from pin centre
|
| Shank Receiver Size |
50mm square shank |
| Shank Length |
Last pin to start of the flare 105mm |

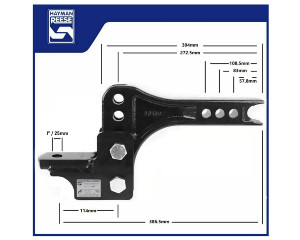

| Ball to Pin Length |
278mm 303.5mm 328.7mm |
| Pin to Rear Length |
108.5mm 83mm 57.8mm |
| Towball Shank Diameter |
25mm (1") |
| Tongue Width |
62mm does not work for high-rise towballs |

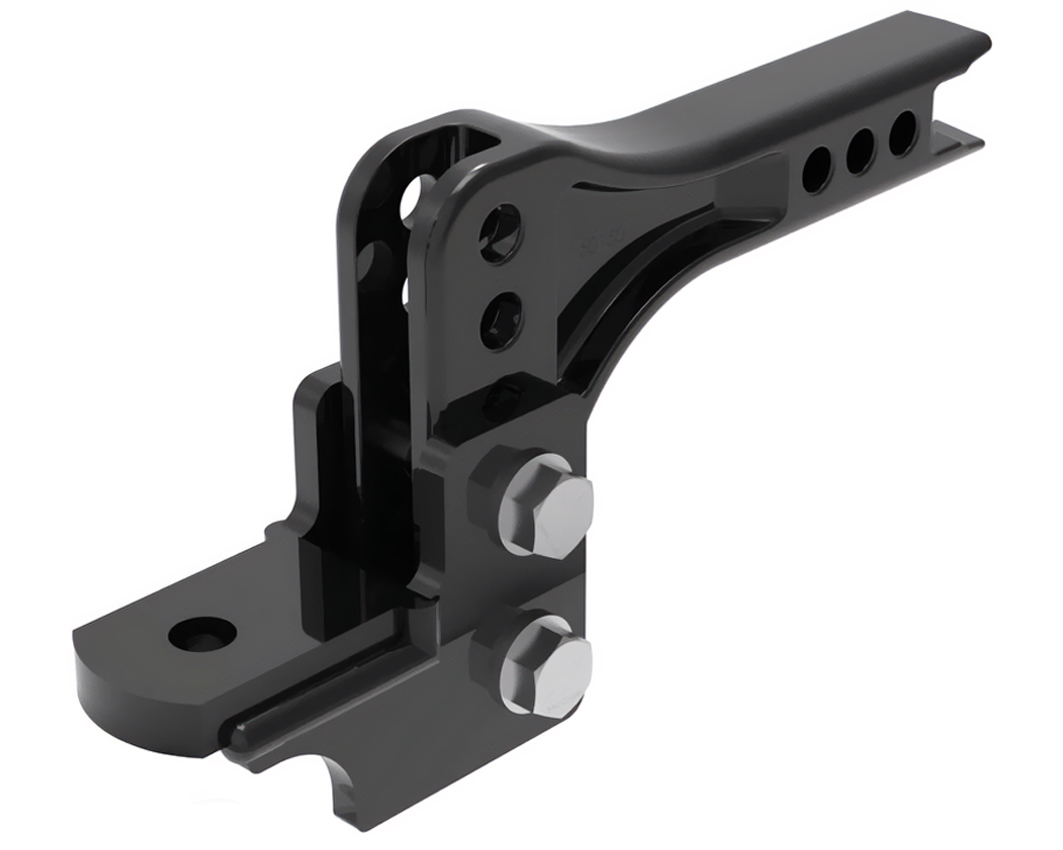

Adjustable Ball Mount
- Superior range of adjustment up to 200mm
- Suitable for all vehicles, including trucks
- No longer supplied with fitted 50mm towball
- Cast shank, which can be used in inverted position
- Fabricated head

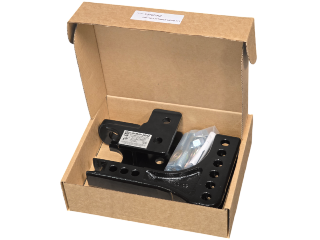

- Packed in a carton
- Suits all hitches including DO
- Fits in a Ford Ranger up to the first hole only.
- For Toyota Hilux you need to check the pin to the end of the receiver - needs to be 105mm or less
- 3500kg
