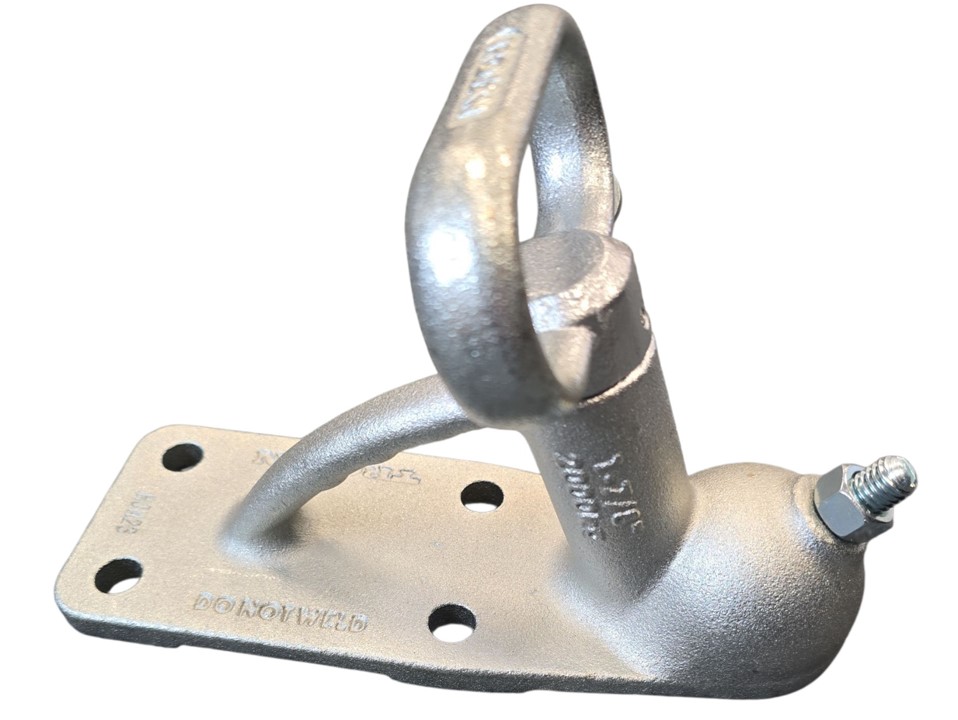

- 2,000 Kg capacity
- Ball diameter: 1 7/8”
- 4 x hole mounting
- Non-Braked
- Slimline
- Zinc Finish, plated for protection
- Includes: lockable safety trigger and a tow ball anti rattle screw

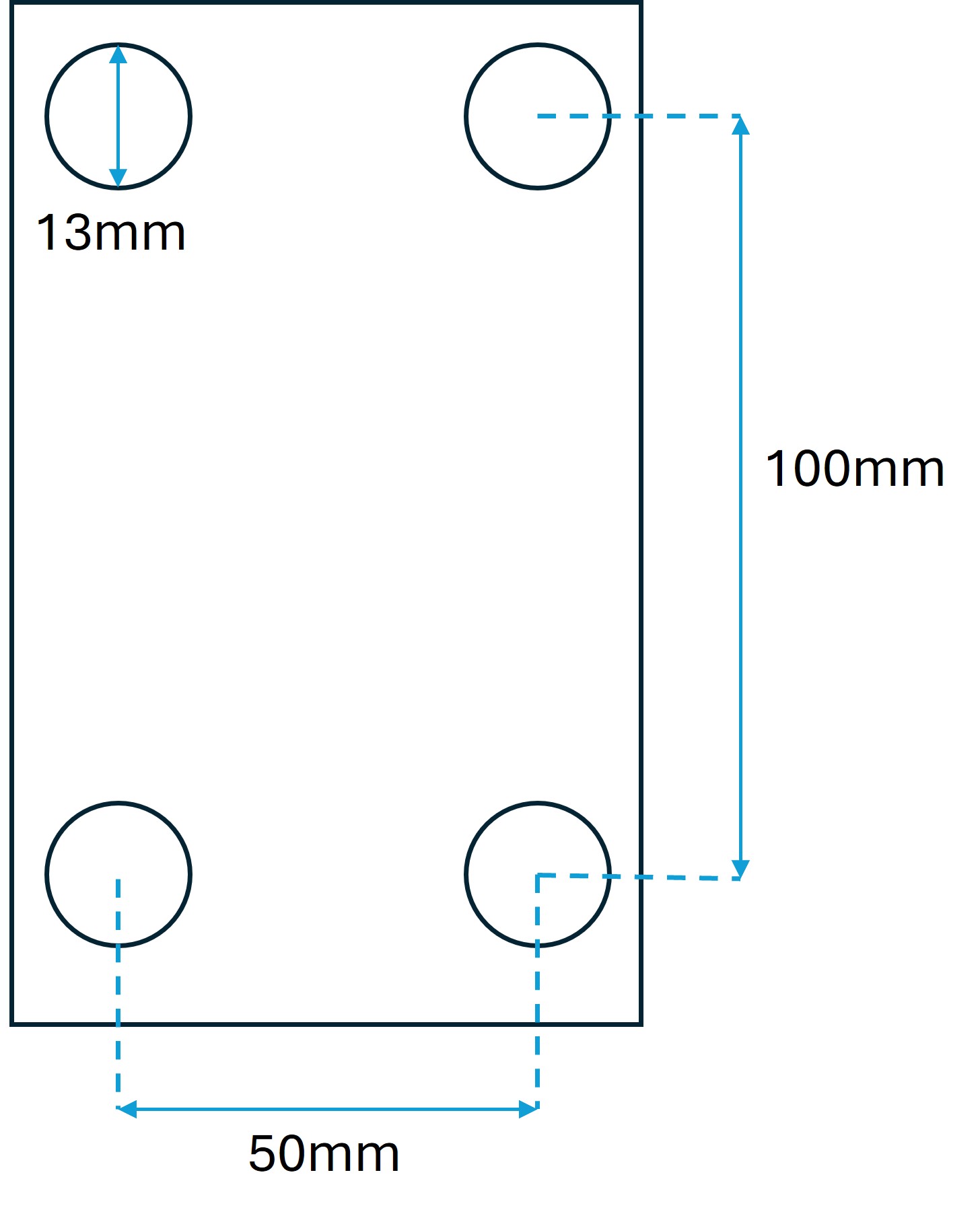

Below is the measurement between the bolt hole center.The bolt holes are to suit M12 bolts. Fitment should be by way of 4x high tensile bolts.
| Bolt Size |
G 8.8 |
G 10.9 |
M10
|
45ft/lb 60Nm |
60ft/lb 80Nm |
| M12 |
75ft/lb 100Nm |
90ft/lb 120Nm
|
